Air Operated Pump

Beranda / Layanan / Air Operated Pump

Air Operated Double Diaphragm Pump

Pompa diafragma bertenaga udara (AODD) untuk memindahkan cairan kimia, slurry, dan cairan kental — mampu menghisap sendiri (self-priming) serta aman beroperasi tanpa cairan (run-dry).

AODD 1/2" Stainless Steel

Flow: 50 L/min · Max Pressure: 8.4 bar · Air Inlet: 1/4″ NPT

AODD 1" Aluminum Body

Flow: 130 L/min · Max Pressure: 8.4 bar · Teflon Diaphragm

AODD 2" Polypropylene

Flow: 540 L/min · Media: Acids/Alkalis · Santoprene Diaphragm

AODD 3" Cast Iron

Flow: 1100 L/min · Temp: -40°C to 120°C · ATEX Certified

AODD 1.5" PVDF Body

Flow: 280 L/min · Chemical Resistant · PTFE Diaphragm

Mini AODD 1/4" SS316

Flow: 18 L/min · Compact Design · Food Grade Available

Penyedia terpercaya solusi Industrial Automation, Electrical Control System, dan Industrial Pump.

Link Cepat

Hubungi Kami

AODD 1″ Aluminum Body

Air Operated Double Diaphragm Pump

Flow : 130 L/min (34 GPM)

Max Pressure : 8.4 bar (120 PSI)

Air Inlet : 1/4″ NPT

Port Size : 1″ NPT/BSP

Material : Aluminum Body + Teflon Diaphragm

Media : Solvents, Acids, Paints

Air Consumption : ~0.5 Nm³/min at max

Minta Penawaran / Konsultasi

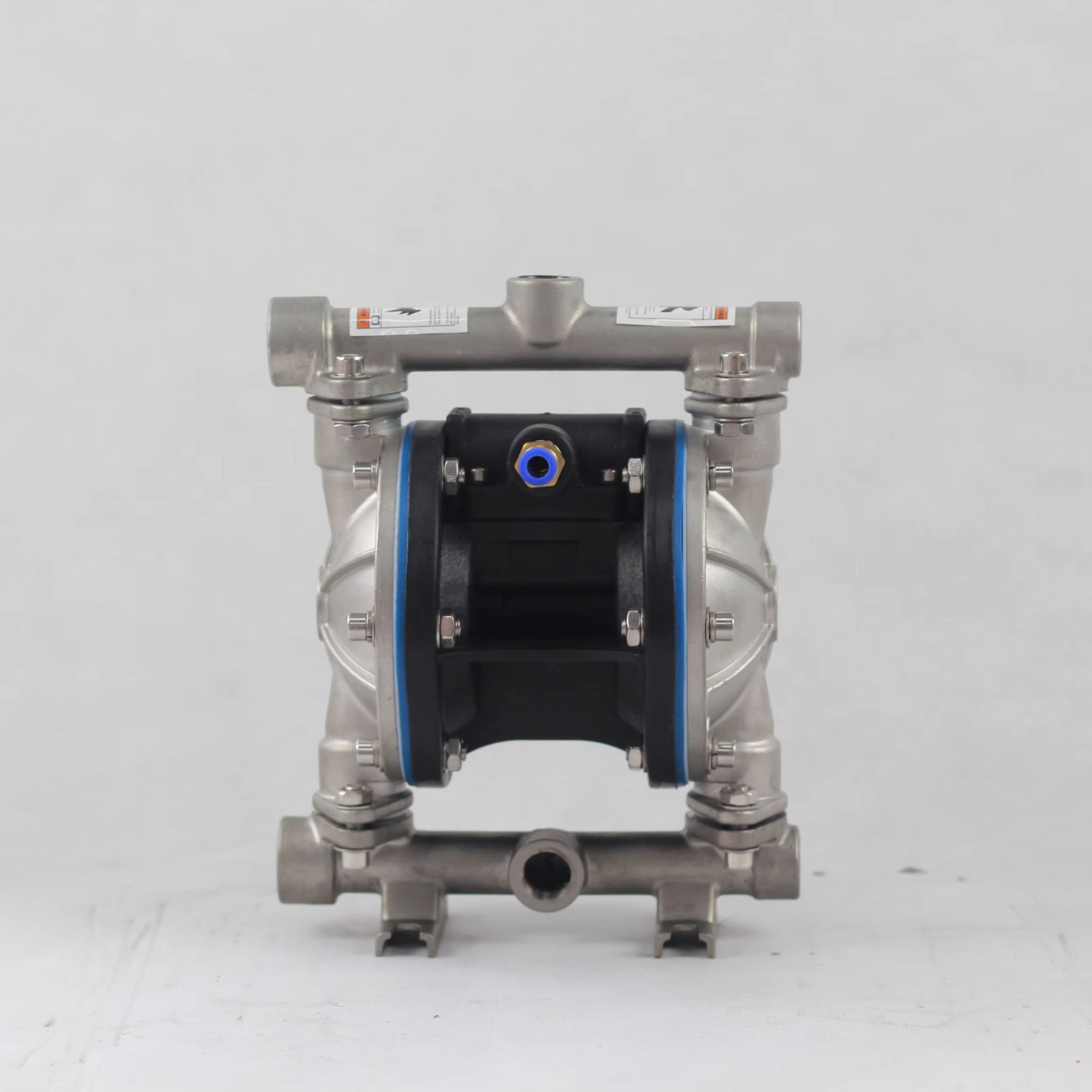

AODD 1/2″ Stainless Steel

Air Operated Double Diaphragm Pump

Flow : Rate50 L/min (13 GPM)

Max Pressure : 8.4 bar (120 PSI)

Air Inlet : 1/4″ NPT

Port Size : 1/2″ NPT

Material : SS304 Body + PTFE Diaphragm

Media : Water, Chemical, Slurry

Temperature : -40°C to 120°C

Certification : A TEX Option

Minta Penawaran / Konsultasi
